J1-94

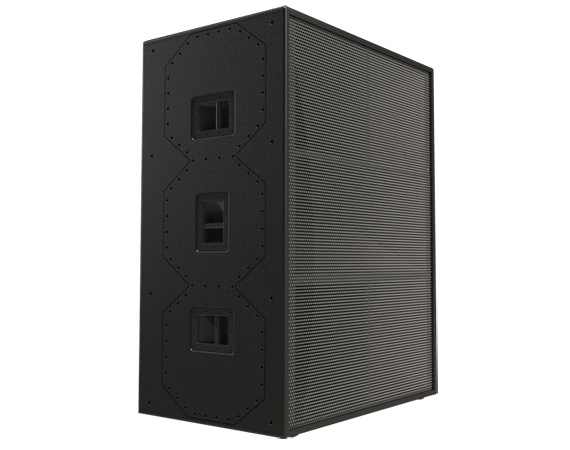

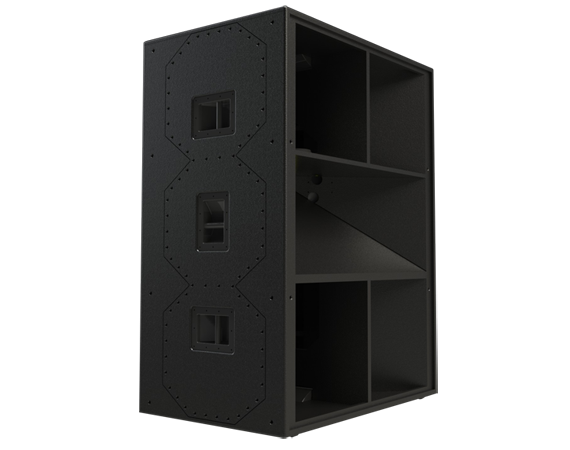

The J1-94, or Jericho Horn, is simply the most accurate high-power loudspeaker ever created

A single cabinet produces quality audio well beyond 1000 feet from a true full range point source. The JH-94 houses six 18 inch drivers, six 6 inch mid-range drivers and three 1.4 inch coaxial high frequency drivers. That's 15 drivers seamlessly combining together to provide more than 145 dB SPL.

Get the Specifications

Download Spec Sheet
Download Drawings (ZIP File)

1 Danley Jericho beats out the competition's 12 box line array

Specifications

  • coverage Pattern
    90˚ horizontal x 40˚ vertical
    (0˚ on axis, 40˚ down -6dB)
  • operating
    frequency range
    47 Hz - 18 kHz +/-3dB

    37 Hz - 24 kHz -10dB
  • continuous output
    148 dB SPL
  • peak output
    151 dB SPL
  • sensitivity
    Band dependent
  • driver complement
    six 18" woofers
    six 6" midrange drivers
    three coaxial HF drivers
  • dimensions
    60 x 45 x 30 inches
  • weight
    720 lbs
  • Rated Impedance
    Low frequency 4ohm
    6 x 4 ohm loads
    Low frequency 8ohm
    2 x 2 ohm loads
    Midrange
    1 x 4 ohm load
    High
    1 single 4 ohm load
  • Power Rating
    LF > 17,000 W cont.
    MR > 1200 W cont.
    HF > 600 W cont.
