The TH Spud

Low profile for under or behind seat installation

th spud header image

TH Spud

Designed with all of you home theatre enthusiasts in mind

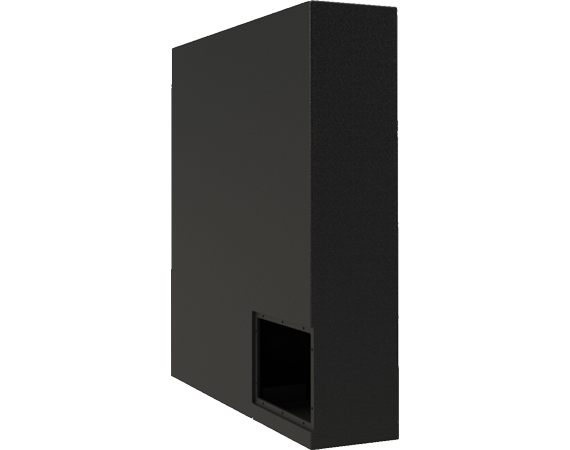

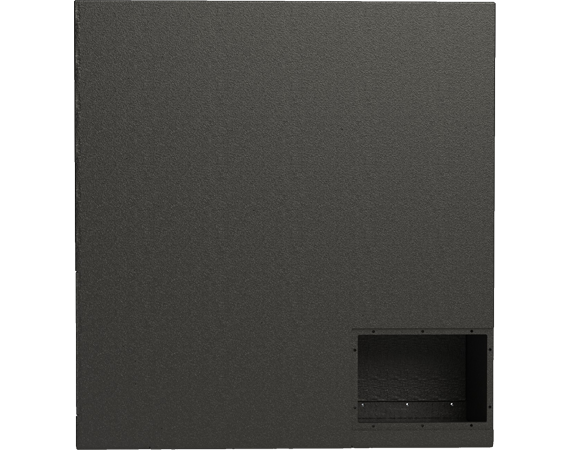

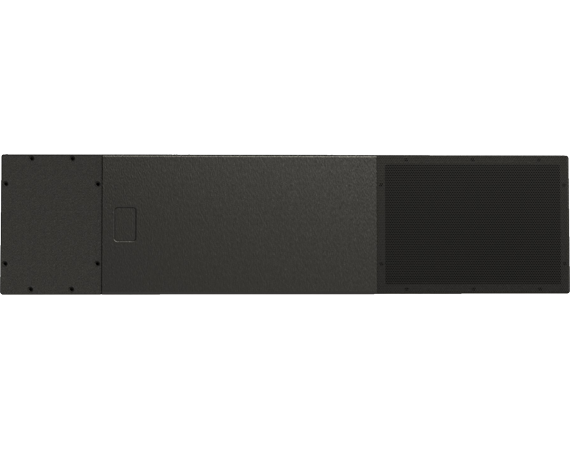

The TH Spud subwoofer can easily be installed under or behind the seats in your home theater thanks to its' 11 inch depth. The THSPUD is capable of producing incredibly deep bass that you can feel with a flat response all the way down to 17 Hz while handling 800 watts. The TH Spud features removable covers that allow for three choices for the location of the acoustical output based on the installation orientation you choose. An optional steel grill is also available upon request.

The ultimate "couch potato" subwoofer!

Specifications

  • operating
    frequency range
    19 Hz – 125 Hz - 3 dB
    17 Hz -10dB
  • continuous output
    120 dB SPL
  • peak output
    126 dB SPL
  • sensitivity
    94 dB SPL (2.83 Volts into rated Z, at 1 meter) measured in half space
  • driver complement
    two 8" long excursion woofers
  • dimensions
    11 x 48 x 45 inches
  • weight
    156 lbs
  • Rated Impedance
    8 Ohms
  • Power Rating
    400 W continuous, 800 W program
