DTS20

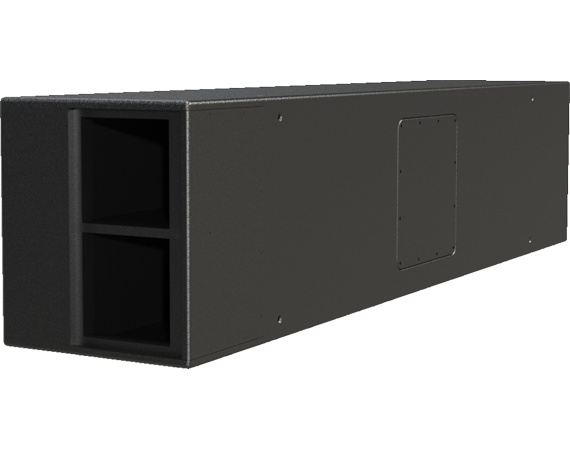

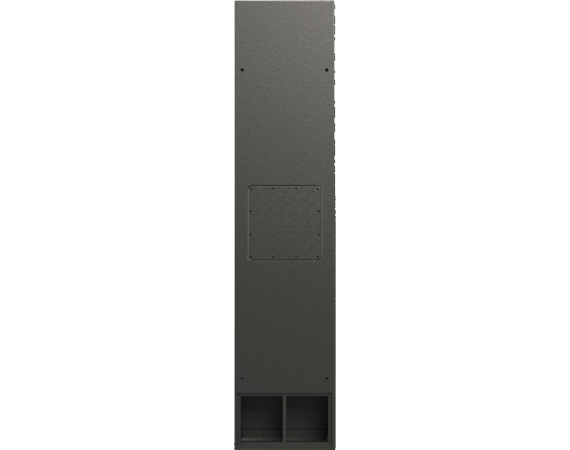

The DTS20, a.k.a. "Tower of Power", is simply the most powerful, lowest frequency reproducing subwoofer on the planet.

Solid output down to 16 Hz, single digit distortion and incomparably low group delay put this amazing subwoofer in a class by itself. The DTS20 is the perfect choice for ultra high-end home theatres, industrial/ military/research facilities, commercial cinemas, mastering facilities, electronic organ reproduction, and commercial surround sound recording/playback. The DTS20 Tower of Power has removable covers that allow two different options for the location of the acoustical output which will be based on the installation orientation you choose.

Get the Specifications

Download Spec Sheet

The Tower of Power

Specifications

  • operating
    frequency range
    18 Hz- 100 Hz -3dB
    16 Hz -10dB
  • continuous output
    122 dB SPL
  • peak output
    128 dB SPL
  • sensitivity
    95 dB SPL (2.83 Volts into rated Z, at 1 meter) measured in half space
  • driver complement
    one 12" long excursion woofer
  • dimensions
    87.5 x 18 x 20 inches
  • weight
    220 lbs
  • Rated Impedance
    8 Ohms
  • Power Rating
    500 W continuous, 1000 W program
