The SH25

The highest directivity loudspeaker on the market

sh25 header image

SH25

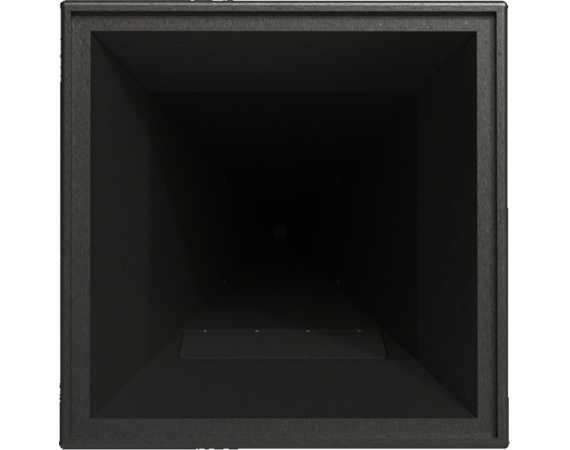

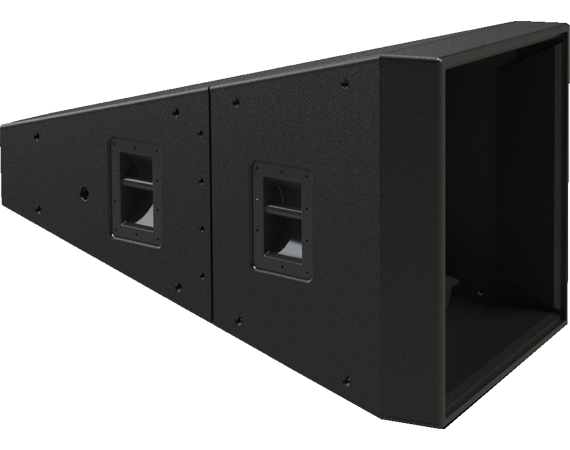

The SH25 is a high directivity, full range long throw horn

The SH25 is ideal where you need great fidelity, high output and pattern control in both the horizontal and vertical axes. A single SH25 has a frequency response of 90 Hz -18kHz. Combining four in a array will extend the low frequency performance down to 50 Hz. The SH25 features a driver compliment of eight 6.5" woofers, four 4" drivers, and one 1 inch high compression driver. With the two recessed handles, the SH25 is also easy to maneuver.

Long-throw full range loudspeaker with Hi-Fi Sound

Specifications

  • coverage Pattern
    25˚ horizontal x 25˚ vertical
  • operating
    frequency range
    90 Hz -18 kHz +/- 3 dB
    70 Hz - 20 kHz - 10 dB
  • continuous output
    137 dB SPL
  • peak output
    143 dB SPL
  • sensitivity
    110 dB SPL (2.83 Volts into rated Z, at 1 meter)
  • driver complement
    eight 6.5" woofers
    four 4" Mid Range
    one 1" High Freq.
  • dimensions
    28 x 28 x 50.7 inches
  • weight
    176 lbs
  • Rated Impedance
    4 Ohms
  • Power Rating
    1000 W continuous, 2000 W program
