The SBH10

“Incredible performance in tiny package”

sbh10 header image

SBH10

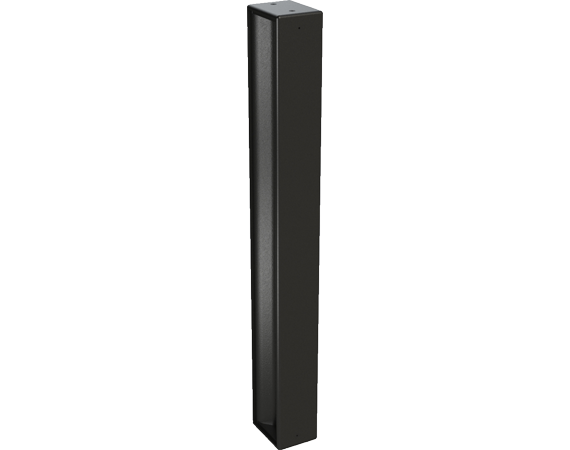

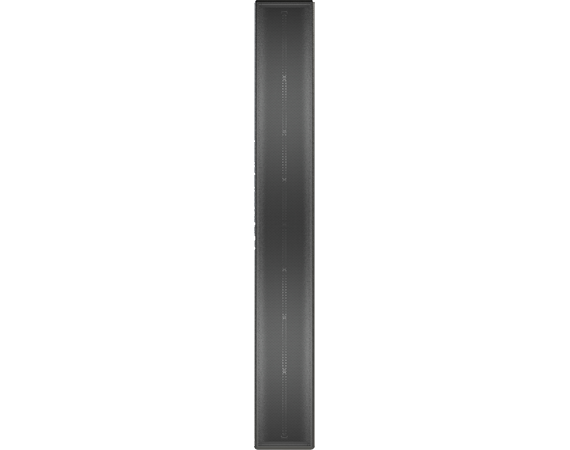

The SBH-10 is Danley's answer for those that are looking for high performance in an ultra-compact column shaped cabinets. The Paraline patented technologies are completely different from any of the multi-cone products on the market in that it performs as a large horn with an effective path length of over 25'! This yields superior performance with unparalleled pattern control, no spurious lobes and no complicated processing for proper performance.

APPLICATIONS:
• Anywhere intelligibility is required in reverberant spaces
• Houses of Worship Public Assembly Halls
• Airports, Train Stations, Public Transit Hubs, Stadiums, Arenas
• Retail kiosks

Get the Specifications

Download Spec Sheet

Superior performance with unparalleled pattern control

Specifications

  • coverage Pattern
    140˚ horizontal x 10˚ vertical
  • operating
    frequency range
    77 Hz – 15 kHz +/- 3 dB
    50Hz – 18 kHz -10 dB
  • continuous output
    127 dBSPL
  • peak output
    133 dBSPL
  • sensitivity
    99 dBSPL measured at 10M @ 28.3V input
  • driver complement
    Eight - 5” Coaxial drivers
  • dimensions
    60”H x 9”W x 9”D
  • weight
    100 lbs.
  • Rated Impedance
    4 ohms
  • Power Rating
    1300 watts continuous
    5200 watts peak
