The SH Micro

Ultra Low Profile

SH Micro

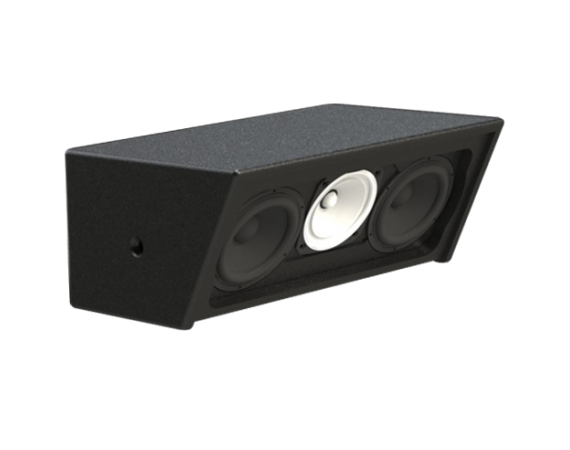

The SHMicro is an ultra low profile Synergy Horn™ in a package less than 8" tall

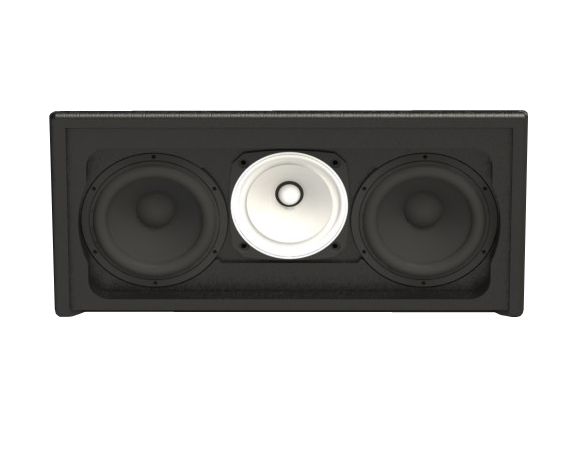

The SHMicro is popular for under balcony fill and also works very well for home theater center channel or surrounds. Each cabinet houses two 5.5 inch woofers and one 4.5 inch full range loudspeaker.

Get the Specifications

Download Spec Sheet
Download Drawings (ZIP File)

Ultra low profile Synergy Horn

Specifications

coverage Pattern
50˚ x 100˚ H asymmetric x 50˚ V
operating
frequency range
350 Hz - 18 kHz
50 Hz - 20 kHz -10dB
continuous output
122 dB SPL
peak output
128 dB SPL
sensitivity
96 dB SPL (2.83 Volts into rated Z, at 1 meter)
driver complement
one 10" LF, one 1" HF
dimensions
12 x 28 x 25.5
weight
69lbs
Rated Impedance
8 Ohms
Power Rating
400 W continuous, 800 W program
