The SH Mini

Small stature, huge fidelity

SH Mini

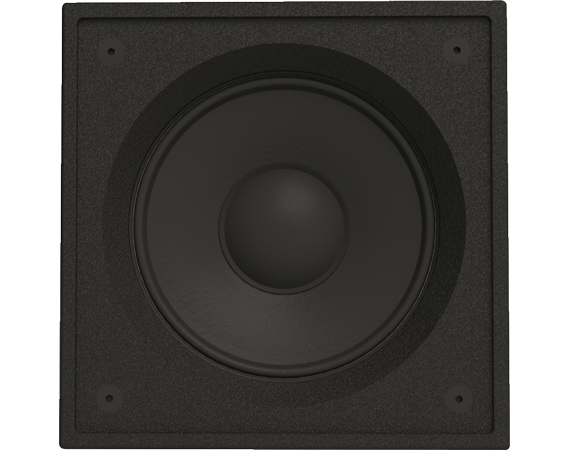

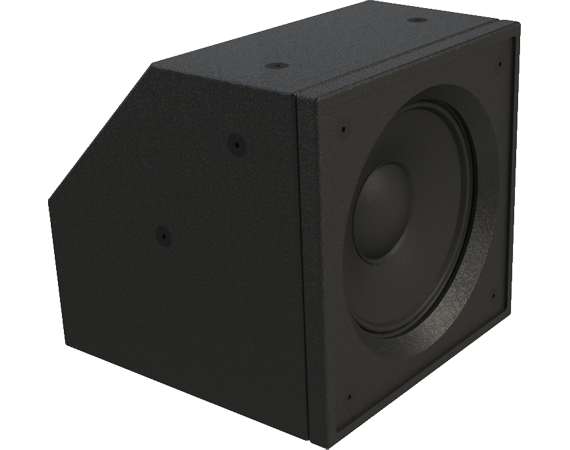

The SH Mini is a full range compact loudspeaker designed for applications requiring wide coverage

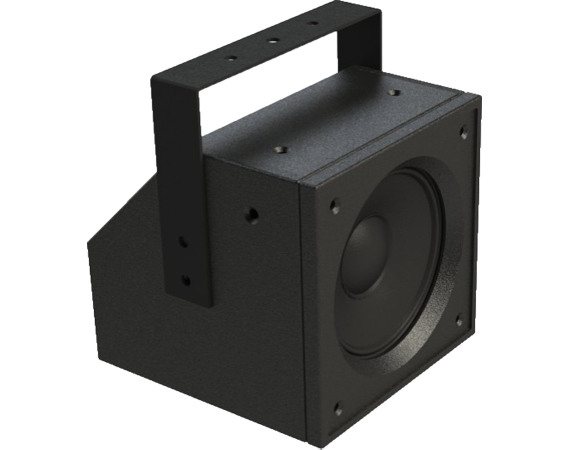

With its ultra compact size, it also can be used as a very compact floor monitor with exceptional clarity. Integrated fly points are standard and flexible mounting can be achieved with the optional U bracket.

Get the Specifications

Download Spec Sheet
Download Drawings (ZIP File)

tiny size, HUGE sound

Specifications

coverage Pattern
100˚ conical
operating
frequency range
125 Hz - 18 kHz +/- 3dB
88 Hz - 20 kHz - 10dB
continuous output
117 dB SPL
peak output
123 dB SPL
sensitivity
88 dB SPL (2.83 Volts into rated Z, at 1 meter) measured in free space
driver complement
one 8" coaxial
dimensions
10 x 10 x 10.5 inches
weight
22.5 lbs
Rated Impedance
8 Ohms
Power Rating
200 W continuous, 400 W program
