The SH60

The sound of the legendary SH50 in a wider coverage pattern

sh60 header image

SH60

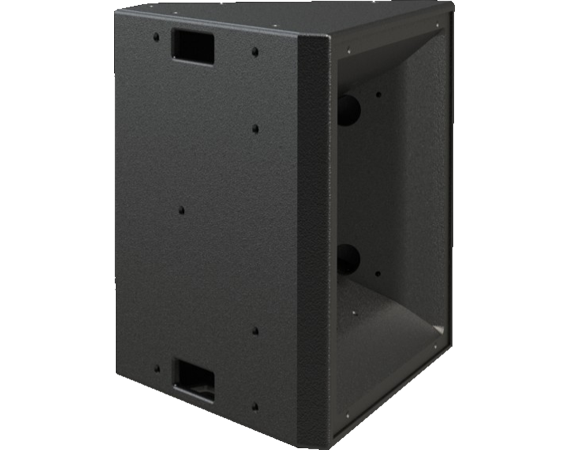

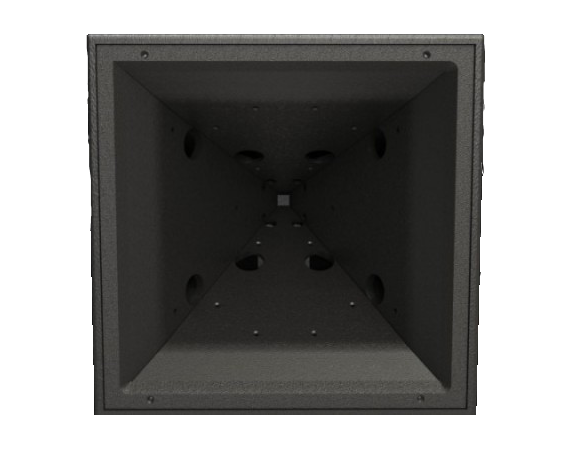

The SH60 is a 60° version of our flagship SH50 Synergy Horn™ loudspeaker

The SH60 features seamless arraying and true full range performance down to 50 Hz, as well as a great low frequency pattern control and high output. In one box, the SH60 houses two 12 inch drivers, six 4 inch mid-range drivers and a 1 inch high frequency driver.

The Sound of the Legendary SH50 with wider coverage

Specifications

  • coverage Pattern
    60˚ horizontal x 60˚ vertical
  • operating
    frequency range
    48 Hz - 18kHz
    41 Hz - 24 kHz -10dB
  • continuous output
    127 dB SPL
  • peak output
    133 dB SPL
  • sensitivity
    100dB SPL (2.83 Volts into rated Z, at 1 meter) measured in free space
  • driver complement
    two 12" woofers
    six 4" mids
    one 1" hf
  • dimensions
    28 x 28 x 22 inches
  • weight
    127 lbs
  • Rated Impedance
    4 Ohms
  • Power Rating
    1000W continuous, 2000W program
