The TH118

Lower and louder

th118 header image

TH118

Building on the success of the TH115, the TH118 has a bit more low frequency extension and is slightly more efficient

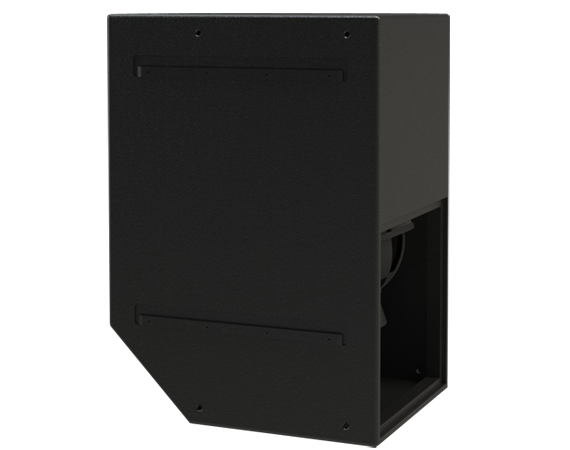

If you need a bit more than the TH115 but don't have room for a larger enclosure, the TH118 is a perfect solution. The TH118 uses the same enclosure as the TH115. TH118 can be installed permanently using a variety of fly-points available on the install version.

When you just need a bit more...the TH118

Specifications

  • operating
    frequency range
    40 Hz - 250 Hz -3 dB
    28 Hz - 300 Hz -10dB
  • continuous output
    137 dB SPL
  • peak output
    143 dB SPL
  • sensitivity
    108 dB SPL (2.83 Volts into rated Z, at 1 meter) measured in half space

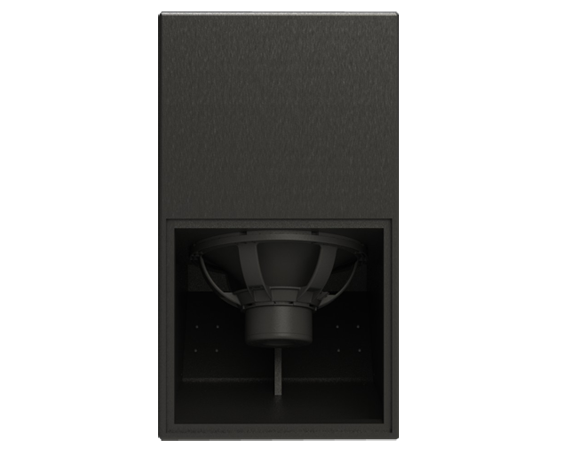

  • driver complement
    one 18" long excursion woofer
  • dimensions
    40 X 22.5 X 28.5 inches
  • weight
    160 lbs
  • Rated Impedance
    4 Ohms
  • Power Rating
    1700 W continuous, 3400 W program
