Has the added benefit of truly modular array-ability
The SM96 combines great fidelity, low frequency pattern control and unrivaled magnitude/phase response into an ultra-compact enclosure. The SM96 is available for installation or for touring.

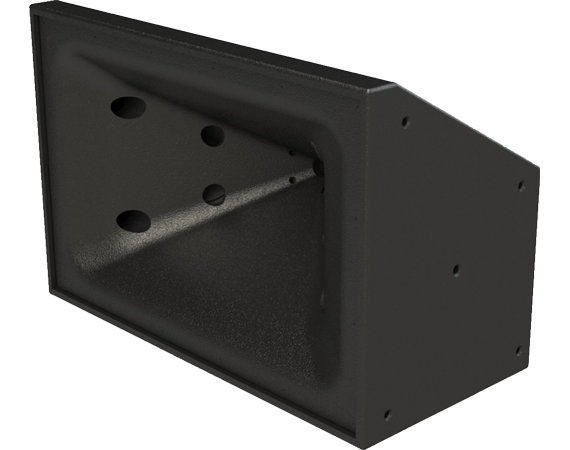

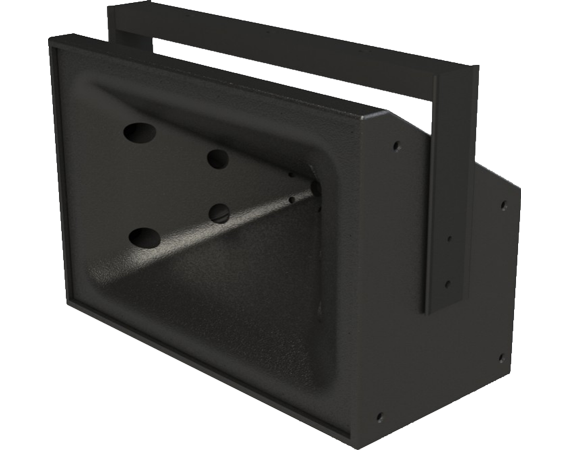

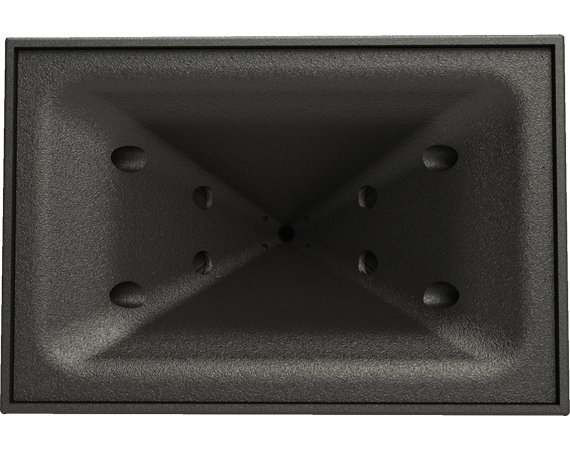

The SM96
90 by 60 coverage in a compact box
Compact and has great response!
Specifications
- coverage Pattern
90˚ horizontal x 60˚ vertical
- operating
frequency range55 Hz - 24 kHz +/- 3dB
42 Hz - 26 kHz - 10dB - continuous output
124 dB SPL
- peak output
130 dB SPL
- sensitivity
98 dB SPL (2.83 Volts into rated Z, at 1 meter) measured in free space
- driver complement
two 8" Woofers
one 5" Coaxial High Freq - dimensions
31.5 x 21 x 15.5 inches
- weight
73lbs
- Rated Impedance
4 Ohms
- Power Rating
800 W continuous, 1600W program
