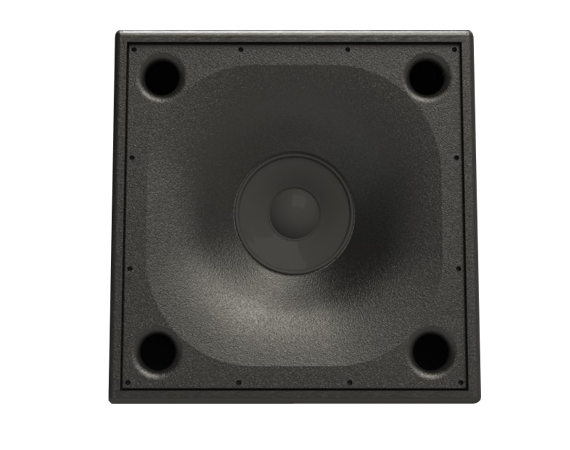

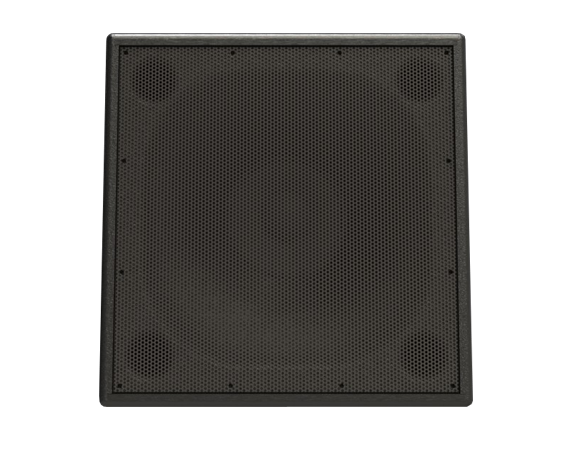

SM100

The SM100 is a two-way full range Synergy Horn™ loudspeaker that flawlessly delivers 100 degree dispersion

It is an excellent choice for distributed systems due to its superior pattern control, frequency response and overall fidelity. The pre-installed 1 3/8" pole cup for tripods makes the SM100 a great choice for portable systems.

Get the Specifications

Download Spec Sheet
Download Drawings (ZIP File)

Wide dispersion with high fidelity

Specifications

coverage Pattern
110˚ conical
operating
frequency range
70 Hz- 20 kHz +/- 3dB
50 Hz - 24 kHz - 10dB
continuous output
120 dBSPL
peak output
126 dB SPL
sensitivity
95 dB SPL (2.83 Volts into rated Z, at 1 meter) measured in free space
driver complement
single 8" coaxial
dimensions
20.5 x 20.5 x 9 inches
weight
45 lbs
Rated Impedance
8 Ohms
Power Rating
300W continuous, 600W program
